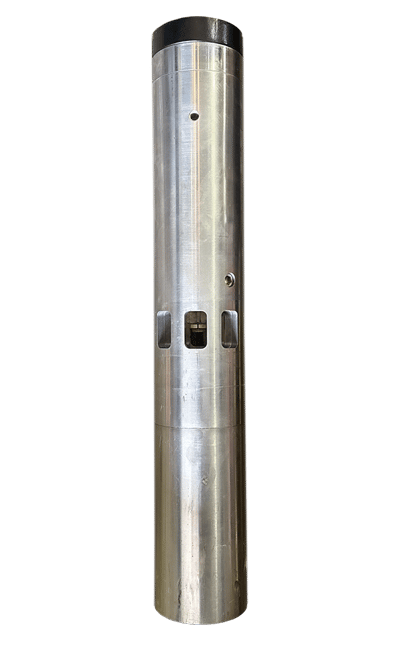

AirGun-GH

The Technology

A DEEP DIVE Into AIRBURST®

• 100% Operator Controlled
• Highest Energy & Pinpoint Placement
• Byproduct-Free Well Rehabs

AirBurst® has enhanced the performance of thousands of water wells across the USA, Europe, Latin America, and the Middle East, proving its effectiveness and adaptability in diverse applications.

Next Section

The Technology in Action

See the Power of AirBurst

Click the Video to see the explosive pressure wave and negative pressure.
Next Section

AirBurst Technology

PROCESS

Delivering Lasting Well Restoration

  1. Pre-Test

    Get accurate pumping measurements for production and efficiency

    noun-measure-WHT



  2. Assess Existing Well

    Through video and review of existing maintenance logs, map areas of priority, fractures, and structural or water quality concerns

    noun-video-WHT



  3. Pre-Rehab

    Use wire brushing and other mechanical methods to prepare for AirBurst

    noun-wire-brush-WHT



  4. Prescribe Settings

    Select gun, chamber, pressure, gas, timing settings for max effect and safety for every zone

    noun-checklist-WHT



  5. Initial Pass

    AirBurst® precisely detonates 2-3 times per foot dislodging mineralogical and bacteriological buildup

    noun-target-WHT



  6. Remove Fill

    Debris is a good sign that the rehab is working! Remove via bailing or airlifting pumping

    noun-bucket-WHT



  7. Re-Attack

    Deeply develop fractures and problem areas; agitate/surge chemistries deep into formation

    noun-firework-WHT



  8. Measure & Maintain

    Re-test well production and implement regular maintenance program between rehabs

    noun-measure-calendar-WHT





Before & AFter

Increasing Well Production + 550%

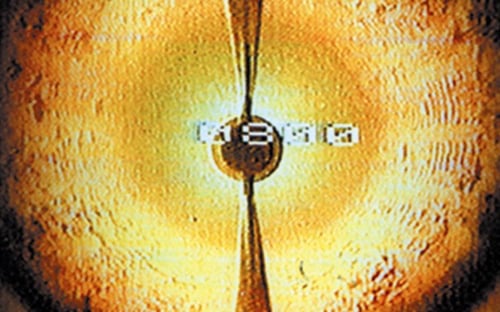

Before-6gpm

Before AirBurst 6 gpm / ft

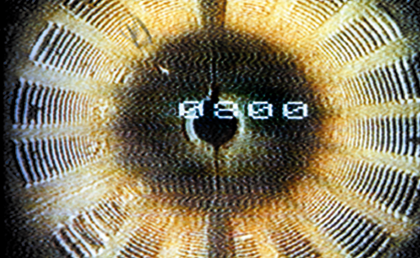

After-33gpm

After AirBurst 33 gpm / ft

Airburst penetrates deep into the formation TO:

  • Clean screen and well bore
  • Redevelop gravel filter
  • Eliminate sand production
  • Break up mineral cementation of gravel pack and formation
  • Scour bio-slime from screen, gravel pack and formation

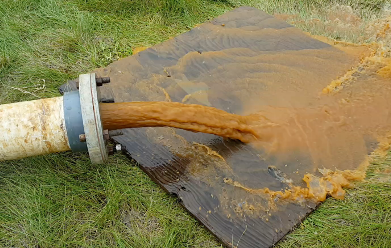

Dumping-1

At a glance

Performance Stats

See how AirBurst stacks up in the field across different well types and against the competition

910 grams of TNT

The equivalent amount of non-destructive force applied with 3,000 psi gas pressure from our AirBurst largest model, the 1500C

3.6x Energy

The multiple of energy per shot that AirBurst brings relative to the next closest air impulse generator

100% operator-controlled

The air gun fires as fast or slow as you want, at any pressure you want. All adjustable from the surface without tripping the tool out of the well

4" - 30"+ Well Diameters

Tools available for everything between small residential wells and massive municipal wells. Wire-wrapped screened, louvered, mill-slot, open wells, limestone, sandstone, volcanic, bedrock, basalt, sand and gravel, mud. Give us anything to work in.

3,000 feet

The greatest depth we have ever treated

Contact Us

LICENSING PROGRAM

AirBurst® licenses are defined by geography, field of use, and exclusivity. If you’re interested in becoming an authorized Licensee of AirBurst Technologies, please contact us today.
